SmartHub + DroneOptID

Intelligent Edge Processing

Item Number: 107-100 (SmartHub Module) | Item Number: 107-200 (DroneOptID Module) |
Item Number: 107-300 (SmartHub) | Item Number: 107-400 (SmartHub + DroneOptID)

The SmartHub is a versatile, high-performance sensor control unit, designed for both field deployment and fixed site installations. Whether housed in the Edge deploy case or installed in a server rack, this multi-sensor network device enables seamless networking of DroneShield and third-party technologies.

Optional Rugged Deploy Case

The Edge Deploy Case allows expedient installation of the SmartHub and DroneOptID Modules, ensuring their protection for easy transport and use in harsh environments.

Equipped with a high-performance cooling system for filtered airflow, the case is designed to IP55 standards, offering enhanced durability and reliable performance in temporary deployments and expeditionary fixed site (EFS) solutions.

SmartHub

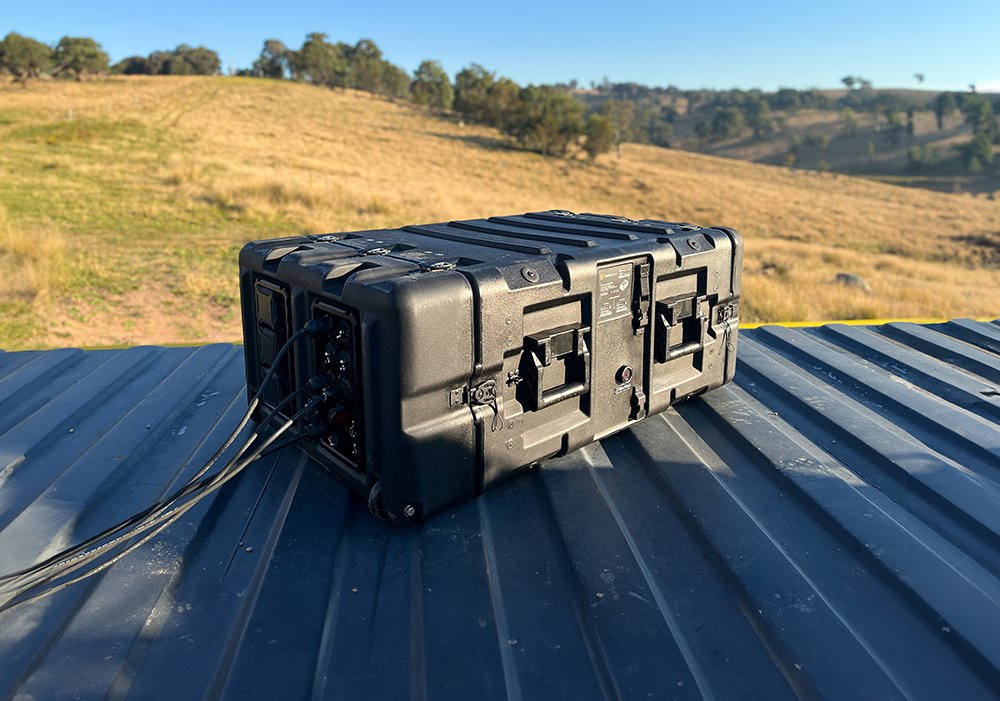

Image: Edge Deploy Case

Features

Modularity and Comprehensive Compatibility

The SmartHub is part of a full DroneSentry installation, connecting sensors and effectors through SensorFusionAI to DroneSentry-C2.

Rapidly Deployable

The SmartHub and DroneOptID Modules can be housed in the optional Edge Deploy Case, enabling transportation and protection for temporary deployments and EFS solutions.

An aerial view of a large body of water

AI-Powered Processing

Acting as a data gateway and pre-processor, the SmartHub enables AI-driven decision making with the DroneOptID and ComputeNode systems.

Advantages

  • Enables Advanced Sensor Fusion

    The SmartHub aggregates and prioritises large volumes of sensor data, consistently relaying this information to the ComputeNode. This facilitates smart sensor fusion techniques, reducing data storage and bandwidth requirements, while improving latency and response times

  • High-Quality Connectivity

    The SmartHub ensures reliable operation with military-grade connectors and durable construction, providing consistent power and data connectivity in all environmental conditions. The SmartHub provides a stable access point to monitor and configure sensors, both onsite and remotely

  • Automatic Device Detection

    The SmartHub scans its local network for new sensors, and automatically installs and configures them upon detection

  • Secure Ecosystem and Encrypted Connection

    The SmartHub gives users full control over which devices are passing data into their system. The device secures the link between sensor data and the remote ComputeNode, ensuring encrypted data transport

  • Highly Portable

    The Edge Deploy Case is under 1m (3.3ft) in length and weighs ~50kg (110lb) with a complete configuration. This allows it to be transported in most vehicles, carried by two personnel, or moved by a single operator using built-in wheels

Specifications

Supported Devices

4 x RfOne Mk2 RF Sensors
4 x Echodyne EchoGuard or Echodyne EchoShield Radar Panels
4 x DroneCannon Mk2
1 x CompassOne or equivalent GNSS Compass
1 x Optical Sensor (e.g. Bosch MIC 7100i, FLIR HDC Ranger UC)

Environment and Installation

SmartHub Module + DroneOptID Module in Edge Deploy Case:
Ingress Protection Designed to IP55
Dimensions 977mm x 625mm x 390mm (38.5” x 24.6” x 15.4”)

Individual SmartHub Module: 610mm x 483mm x 89mm (24" x 19" x 3.5")
Weight 50.4kg (111lb)

Individual SmartHub Module: 12.6kg (27.8lb)
Operating Temperature -20°C to +40°C (-4°F to +104°F)

Maintenance and Warranty

Maintenance Routine inspection and periodic cleaning of fan filters
Warranty
  • 12 months from initial shipment
  • Up to 5 years (additional charge)

Image: Individual SmartHub Module
