RfPatrol Mk2
Advanced Multi-Mission Detection
Item Number: 112 | NSN: 5865661674795
RfPatrol Mk2 is a highly versatile, completely passive/non-emitting wearable UAS detection device. The device offers the user real-time situational awareness without distraction or complex operation. It has been designed to be highly effective for a variety of operators in a range of demanding environments. The RfPatrol device automatically detects the presence drones moving at any speed.
The RfPatrol can be operated in two modes, ‘Stealth’ and ‘Glimpse’, allowing the user to control how they receive alerts. The device is supported by easy-to-install, remote updates that allow the operator to keep their devices database up-to-date in changing threat environments.
Features
Wearable Detection
Integrated Software Defined Radio capability for compact application. Detects both custom protocol and Wi-Fi RF links
Integrated Directional Antennas
Supplied with omni-directional ISM band antenna. No unintentional RF transmissions for quiet and safe wearable operation. Additional antenna ports available for capability expansion
Robust Design
Housing constructed from aluminum for increased durability. Environmental protection for extended use in harsh environments
Device Manager UI
Device Manager software update tool allows
for capability expansion and access to
detection logs
Operationally Effective
Optimized power consumption for extended operation. Quick-release and reload battery operation, NATO military-grade battery
Integration
Supports integration into existing management systems via existing API (available through JSON and gRPC), utilizing net warrior-compliant hardware
The latest FPGA and Software Defined Radio Technology
Advantages
Effective Coverage
Detects a wide variety of UAS and remote controllers
Passive Device
No intentional RF emissions and no decryption of wireless protocols for quiet and safe operation
Additional Frequency Bands
Additional hardware and software upgrade path for capability expansion
DroneShield Advanced Technology
Device powered by DroneShield’s latest SDR scanning technology
Bigger Picture
Data feed output to Battle Management System (custom as required)
Integration
Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilizing net warrior-compliant hardware
RfPatrol Accessories
RfPatrol Direction Finding Kit
Magnetic Antenna Kit
Specifications
RfPatrol
| Unit Weight | 800g / 1.76lbs |
|---|---|
| User Feedback | Visual, Haptic, Audible |
| Dimensions | >156.8 x 92 x 48.8mm / 6.17“ x 3.62“ x 1.92“
(excluding antennas & attachable battery) |
Battery & Power
| Rechargeable lithium-ion battery, quick release and reload battery | |
| NATO-standard military grade battery | |
| Battery Nominal Voltage | 10.8VDC |
|---|---|
| Battery Weight | 380g / 0.83lbs |
| Battery Dimensions | >71mm x 41mm x 86mm / 2.8“ x 1.6“ x 3.4“ |
| Operating Time |
10 hrs+ (continuous operation) Pass through charger available for extended use |
| Operating temperature | -30ºC to +60ºC / -22ºF to +140ºF |
Environment
| Operating temperature | -20º to +60º C / -4ºF to +140ºF |
|---|---|
| Ingress Protection | Rated to IP67 |
Shipping
| Packaging | Ships in a Rugged Carry Case (IP67) |
|---|---|
| Carry Case Dimensions | 590mm x 220mm x 380mm / 23“ x 8.66“ x 14.96“ |
| Total Shipped Weight | 12.0kg / 26.46lbs - including carry case |
Warranty
| 12 months from date of shipment Longer warranty available on request |

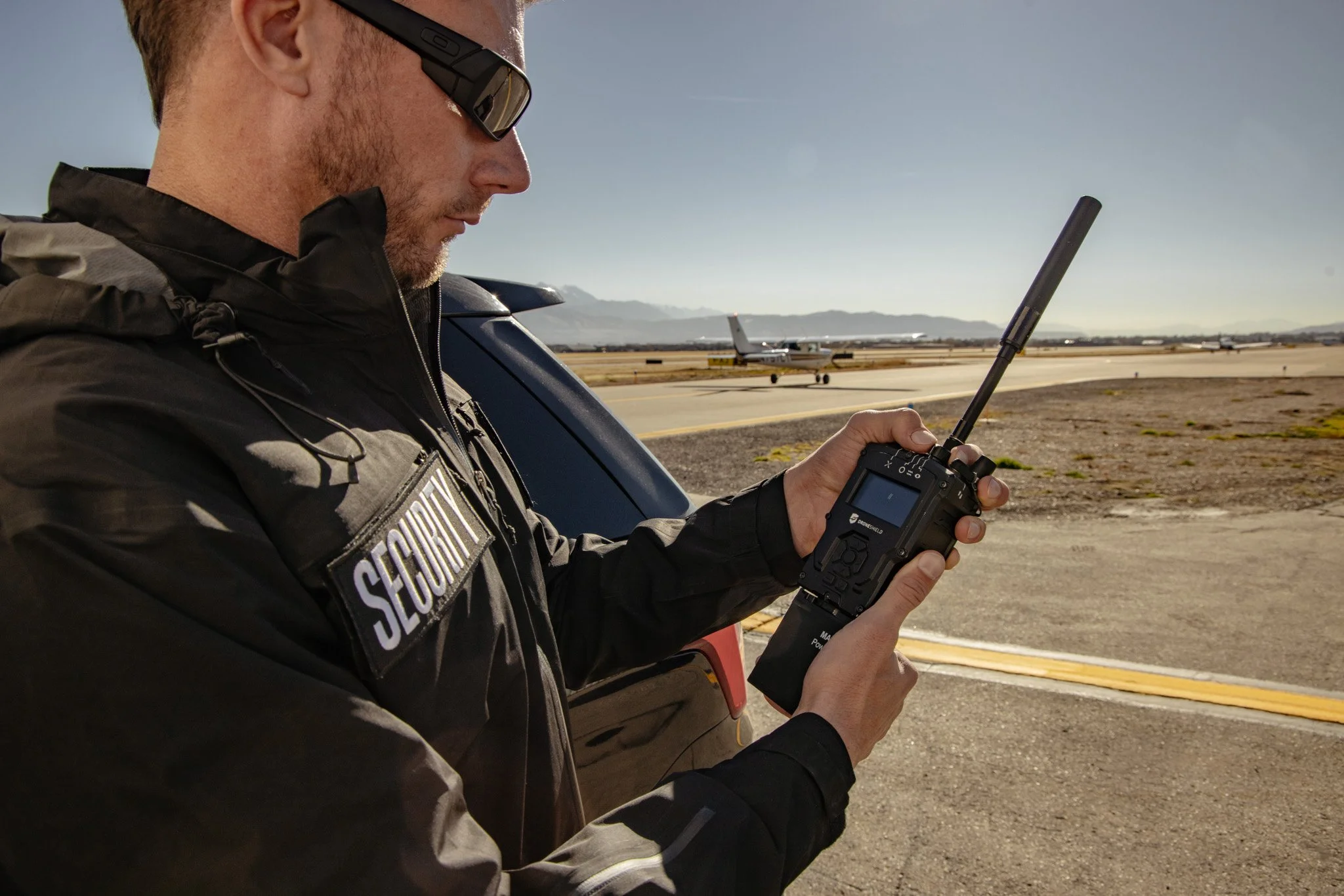

Photo Gallery
