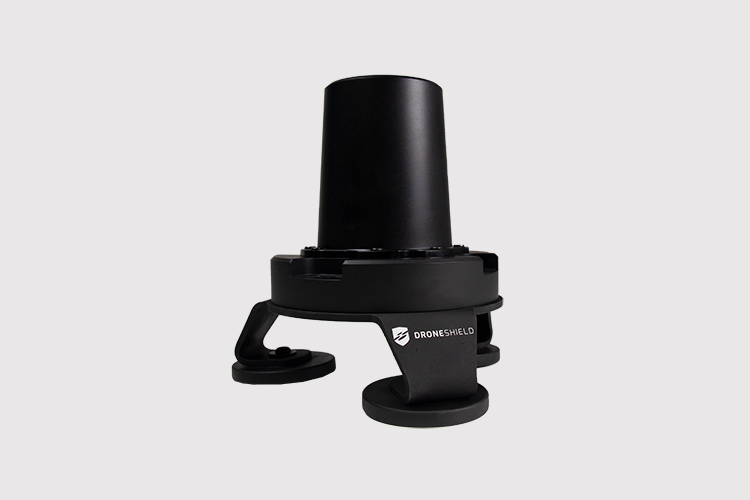

RfPatrol Magnetic Antenna Kit
Vehicle Mounted Wide-Band Antenna
Item Number: 108-28
The RfPatrol Magnetic Antenna Kit provides RfPatrol detection capability when it is mounted inside the vehicle.
The antenna attaches with strong magnets to the roof of a vehicle requiring no specialized installation. A single cable is routed inside the vehicle cab connecting to the V-Mount / Triplexer.
RfPatrol can stay active after the operator has left the vehicle utilizing the rapid detachment system for on-the-go situational awareness.
Specifications
Magnetic Wide Band Antenna
| Frequencies | ISM Bands |
|---|---|
| Installation requirements | Install on ferrous metal flat plane without obstructions |
| Weight | 1450g (3.2lbs) |
| Dimensions | 195mm x 195mm x 175mm |
| Connector Type | N-Type (F) |
V-Mount / Triplexer
| Mounting system | VESA 75 |
|---|---|
| Weight | 340g (0.75lbs) |
| Dimensions | 90mm x 90mm x 45mm |
| Connector Type | TNC (F) |
Shipping
| Packaging | Ships in a Rugged Carry Case (IP67) |
|---|---|
| Carry Case Dimensions | 520 x 220 x 320 mm (20.47“ x 8.66“ x 12.60“) |
| Total Shipped Weight | 10.0kg (22.05lbs) - including carry case |
