Radars
Rapid Deployable 3D Radar Detection
Item Numbers: 103 | 120 | 104
Radars provide precision and ultra-high confidence threat detection and tracks, even in cluttered environment. Radars are used for field-of-view and real beam scanning for 3D detection. DroneShield integrates Radars into its DroneSentry-C2 Command-and-Control platform to enable coverage display, configuration and activation for deployments and installations.
DroneShield currently offer radars available in DroneSentry systems to support autonomous detect and/or defeat capabilities, or standalone devices capable of integration with other C-UAS systems.
Radar Options
Cost-Effective Option
Echodyne EchoGuard
Echodyne EchoGuard offers calibration-free design for rapid installation and integration.
It allows for precise tracking of airborne targets up to 1km with customizable field-of-view and real beam scanning, ensuring your security team has an optimized early warning system for any site.
Mid-Range Option
Echodyne EchoShield
Echodyne EchoShield is a medium-range, software-defined, cognitive 4D Metamaterials ESA Radar.
It is designed for rapid optimization. It boasts intelligent search and best-in-class performance through next-gen ESA.
Top-of-the-Range Option

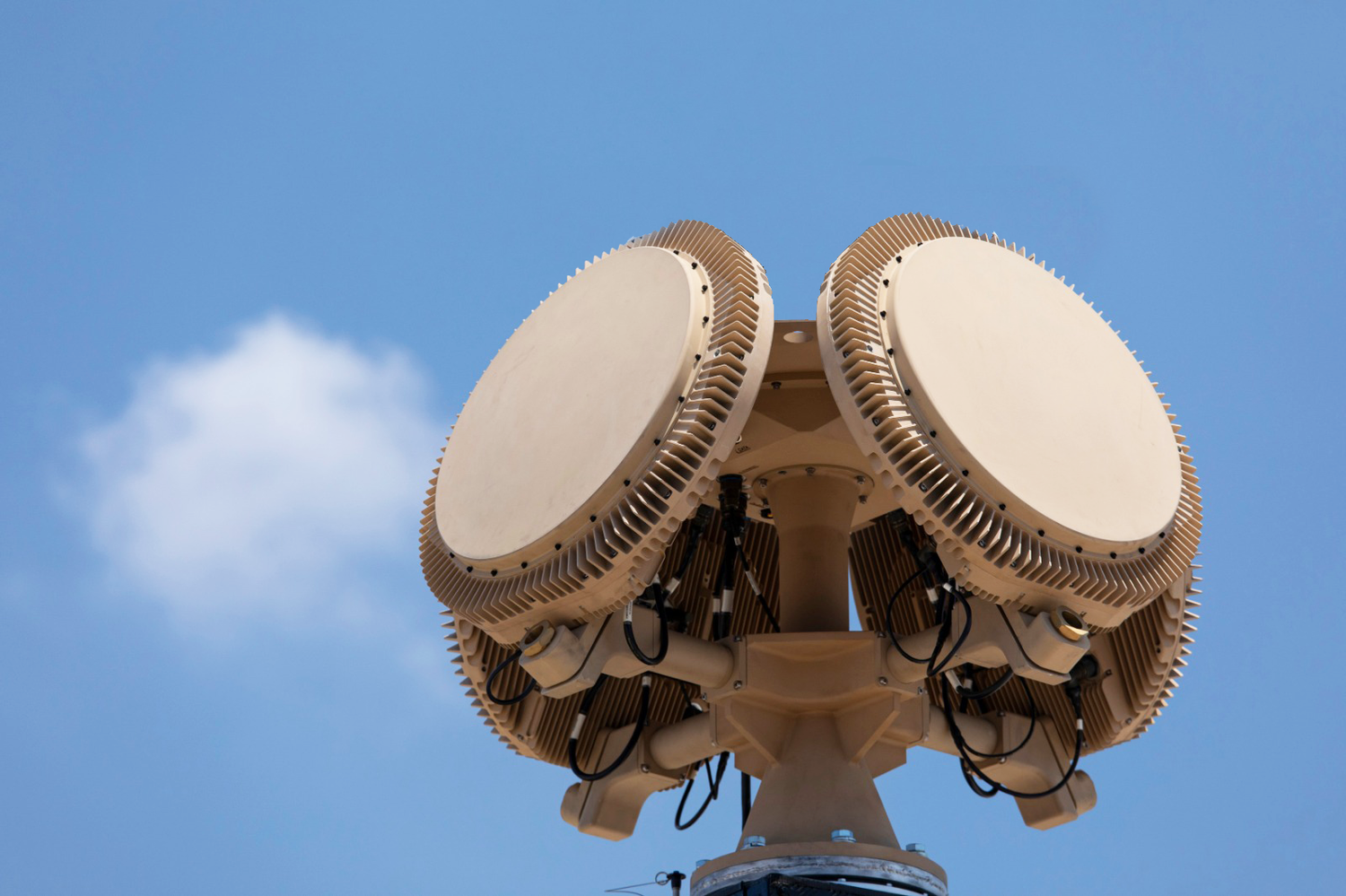

RADA RPS-82
RADA RPS-82 is a multi-mission radar for Counter-UAS and hemispheric surveillance operational missions.
This software-defined, S-band radar platform incorporates an AESA antenna and GaN amplifiers with advanced 4D processing capabilities, providing clutter handling and multipath mitigation.
Advantages
Echodyne EchoGuard
Early Warning
Highly functional radar specifically designed for UAS detection
High Track Acquisition Rate
New detection threats and radar tracks can be established in less than 1 second
Mobile
Compact, lightweight design, perfect for mobile and rapid deployments
Plug-and-Play
Superior onboard technology allows for set up and operation in minutes, with no calibration required
Integrated
Seamlessly integrates with other detection technologies within the DroneSentry-C2, enabling Echodyne EchoGuard’s highly accurate data feed to confirm drone threats
Airport Safe
Independently certified for safe deployment in airport environments
Echodyne EchoShield
Military Grade Hardware
Certified to MIL-STD-810H, rated to IP67
Wider Field of View
A large, customizable and intelligent field of view: 130° Azimuth x 90° Elevation
Multi-Mission Sets
Simple software configuration from a menu of Mission Sets accelerates deployment
Integrated
Seamlessly integrates with other detection technologies within the DroneSentry-C2, providing highly accurate data feed to confirm drone threats
Angular Accuracy
Tracking hundreds of objects with industry-leading <0.5° angular accuracy in both azimuth and elevation
RADA RPS-82
Military Grade Hardware
Combat proven, TRL-9, at the heart of C- UAS systems.
Situational Awareness
Complete Dynamic Air Situational Picture (ASP) while mounted on a tactical vehicle or vessel.
High Performance
Superior performance against low signature targets.
Multi-Mission
Suitable and applicable to various mission requirements
Integrated
Modular Open System Architecture (MOSA) easily integrates with all kinds of Hard and Soft kill systems.
Reliable
Software-defined, automated operation through advanced signal processing and algorithms.
High Track Acquisition Rate
Handles hundreds of targets through Track While Search (TWS) and Revisit modes.
Fast Drone Identification
Enhanced fast volume scan coverage, full Hemispheric (360°) search & track with four radars with in-depth 4D analysis of Doppler.
Specifications
Echodyne EchoGuard
Performance
| UAS tracking up to 1km (0.62 miles) | |
|---|---|
| Field of View | 120° Azimuth x 80° Elevation |
| Frequency | 24.45 - 24.65 GHz (Multi-Channel ) |
Output Options
| Operates in real time in DroneSentry-C2 GUI (Graphical User Interface) |
|---|
Power
| Input voltage | 15 - 28 VDC |
|---|---|
| Power consumption | 50W (Operating USA/Intl) 10 W (Standby USA) 7 W (Standby Intl) |
Environment and Installation
| IP Rating | IP67 |
|---|---|
| Dimensions | 203mm x 163mm x 57mm |
| Weight without packaging | 1.25kg (2.75lbs) |
| Operating Temperature range | -40°C to +75°C (-40°F to +167°F) |
| Configurations | Tower, mast, or tripod mountable |
Available Colors
| Tan |
|---|
| White |
Maintenance
| Annual manual inspection |
|---|
| Bi-annual vent membrane inspection |
Echodyne EchoShield
Performance
| UAS tracking up to 4km (2.48 miles) | |
|---|---|
| Field of View | 130° Azimuth x 90° Elevation |
| Frequency | 15.4 – 16.6 GHz (Ku-band) |
Output Options
| Operates in real time in DroneSentry-C2 GUI (Graphical User Interface) |
|---|
Power
| Input voltage | 21.5 - 33 VDC |
|---|---|
| Power consumption | 250W (Operating) 100W (Standby) |
Environment and Installation
| Compliance | Tested to MIL-STD-810 H |
|---|---|
| IP Rating | IP67 |
| Dimensions | 425mm x 330mm x 180mm |
| Weight without packaging | 17.8kg (39.24lbs) |
| Operating Temperature range | -40°C to +65°C (-40°F to +149°F) |
| Configurations | Tower, mast, or tripod mountable |
Available Colors
| Tan |
|---|
Maintenance
| Annual manual inspection |
|---|
| Bi-annual vent membrane inspection |
RADA RPS-82
Performance
| UAS tracking up to 10km (6.21 miles) | |
|---|---|
| Field of View (Single radar) | 90º in Azimuth x 90º in Elevation |
| Frequency | 2 - 4GHz (S Band) |
Output Options
| Operates in real time in DroneSentry-C2 GUI (Graphical User Interface) |
|---|
Power
| Input power | 28 VDC (per MIL-STD-1275E) |
|---|---|
| Power Consumption | 790W average, 3160W (4 panels) |
Environment and Installation
| Compliance | Tested to MIL-STD-810G |
|---|---|
| Dimensions | 790 mm diameter, 229 mm width (1 panel) |
| Weight without packaging | 60kg (132lbs) |
| Operating Temperature range | -40° C to +55° C (-40°F to +131°F) |
| Configurations | Tripod, distributed on platform, mobile (hydraulic mast or vehicle) or OTM |
Available Colors
| Tan |
|---|
Maintenance
| Scheduled O-level maintenance | Visual inspections, components removal and installation |
|---|---|
| System troubleshooting when applicable | |
